The report generated by an environmental monitoring system can never exceed the raw data produced by the physical sensing element; no matter how advanced the software layer is, a shifted resistance reading or an improperly referenced capacitance measurement will mislead the entire decision chain[cite: 5]. Proper temperature sensor selection lies at the intersection of three engineering fields: resistance-temperature relationship, analog-to-digital conversion, and the physical behavior of the sensing material[cite: 5].
A humidity sensor uses different physics[cite: 5]. The measured quantity is the effect of water vapor in the air on a polymer film[cite: 5]. Three main temperature technologies are encountered in the field: NTC thermistors, RTD resistance detectors, and digital integrated circuits[cite: 5]. Each establishes a different balance of accuracy, cost, and measurement range[cite: 5]. The following sections discuss the working principle, measurable tolerance values, and suitable application areas of each technology[cite: 5].
NTC (Negative Temperature Coefficient) Sensors: Working Principle[cite: 5]
A thermistor is a temperature-sensitive semiconductor resistor, and in the NTC type, the resistance value decreases as the temperature rises; this is because the increasing heat multiplies the number of free charge carriers in the semiconductor material, the conductivity of the material increases, and the measurement circuit reads this as a dropping resistance[cite: 5].
The resistance change follows an exponential curve[cite: 5]. The output is non-linear, and the raw resistance value cannot be directly converted to temperature[cite: 5]. The Beta coefficient method establishes an approximate curve via two-point calibration[cite: 5]. The Steinhart-Hart equation uses three coefficients and provides a fit in the order of ±0.01 °C over a narrow range[cite: 5]. The linearization load falls on the microcontroller[cite: 5].
The typical measurement range is between -50 °C and +150 °C[cite: 5]. Its thermal mass is small, and the response time remains between 0.5 and 5 seconds[cite: 5]. Its unit cost is the lowest among the three technologies[cite: 5]. The measurement current generates heat on the element itself; the self-heating error is limited by using a low current[cite: 5]. A long cable disrupts the reading by adding series resistance[cite: 5].
Thermistors are preferred in basic HVAC applications, white goods, and battery pack temperature monitoring[cite: 5].
RTD (Resistance Temperature Detector) Sensors: High Accuracy[cite: 5]
An RTD is based on the principle that the resistance of a pure metal increases predictably with temperature, and platinum is chosen for this task; because the resistance-temperature curve of platinum remains almost linear over a wide range, the measurement drift is kept at a very low level over the years as the metal remains chemically stable, and the element provides a long lifespan in harsh industrial environments[cite: 5].
A PT100 element exhibits a resistance of 100 Ω at 0 °C[cite: 5]. A PT1000 element exhibits 1000 Ω at the same temperature[cite: 5]. The IEC 60751 standard defines the temperature coefficient as α = 0.00385 Ω/Ω/°C[cite: 5]. The Callendar-Van Dusen equation models the sub-zero region of the curve[cite: 5].
The measurement range extends from -200 °C to +600 °C[cite: 5]. In Class A elements, the long-term drift drops to the order of 0.05 °C per year[cite: 5]. Stability is the reason accredited calibration chains use RTDs[cite: 5].
Cable resistance directly interferes with the measurement[cite: 5]. Three connection schemes manage this error:[cite: 5]
- 2-wire: Cable resistance is added to the measurement[cite: 5]. It is acceptable over short distances[cite: 5].
- 3-wire: A reference line compensates for the cable resistance[cite: 5]. It is the industrial standard[cite: 5].
- 4-wire (Kelvin): Current and voltage lines are separated[cite: 5]. The cable effect is completely eliminated[cite: 5].
The thermal mass is large, and the response time remains between 1 and 10 seconds[cite: 5]. Its cost is high; a platinum element, a precise current source, and an instrumentation amplifier are required together[cite: 5]. Pharmaceutical cold chains, autoclave validation, and process control are RTD domains[cite: 5].
Digital Temperature and Humidity Sensors: Integrated Solutions[cite: 5]
A digital sensor combines the sensing element, the analog-to-digital converter, and the communication interface on a single silicon chip; the measurement signal is converted to digital within the chip, and a noise-immune data packet is transmitted along the cable, thus eliminating analog voltage loss over long lines and electromagnetic interference from the measurement chain[cite: 5].
An integrated temperature and humidity sensor houses two sensing elements in a single package[cite: 5]. The temperature side uses a bandgap reference or a resistive element[cite: 5]. The humidity side is predominantly capacitive[cite: 5].
The I2C protocol uses two lines: the SDA data line and the SCL clock line[cite: 5]. Each device carries a 7-bit address[cite: 5]. Multiple sensors are addressed on a single bus[cite: 5]. The SPI interface uses four lines and offers a higher data rate[cite: 5].
Factory calibration coefficients are stored in the chip's OTP memory[cite: 5]. Linearization is completed within the chip, and an external coefficient table is not required[cite: 5]. The ADC resolution is typically between 14 and 16 bits[cite: 5]. The measurement range remains between -40 °C and +125 °C; the silicon package reaches its limit at high temperatures[cite: 5].
Technology Comparison: Which Sensor Should Be Used Where?[cite: 5]
Hardware selection cannot be reduced to a single parameter; because the gain in accuracy is traded off with cost and measurement range, a fast response time requires a low thermal mass, and a low thermal mass often reduces mechanical durability[cite: 5].
The values represent typical ranges across the industry; they are not the datasheet data of a specific product[cite: 5].
The application area mapping is established as follows:[cite: 5]
- Basic air conditioning (HVAC): NTC is sufficient[cite: 5]. Fast response is more important than absolute accuracy[cite: 5].
- Pharmaceutical cold chain: RTD is required[cite: 5]. Low drift and traceable calibration are mandatory[cite: 5].
- IT server cabinets: Digital elements are suitable[cite: 5]. Multi-point measurement is established over a single Cat6 line[cite: 5].
- Industrial process: RTD operates with a single element up to the +600 °C limit[cite: 5].
Humidity Sensor Technologies: Capacitive and Resistive Measurement[cite: 5]
Relative humidity measurement is based on the principle of water molecules being absorbed by a polymer film, and two methods convert this absorption into different electrical quantities: the capacitive element reads the change in the dielectric constant, while the resistive element reads the change in ionic conductivity[cite: 5].
Capacitive Measurement uses a thin polymer film placed between two electrodes[cite: 5]. As the film absorbs water molecules, its dielectric constant increases, and the capacitance rises[cite: 5]. The change is in the order of picofarads[cite: 5]. The element measures the full range between 0% and 100% RH[cite: 5]. Hysteresis is low and typically remains around 1% RH[cite: 5].
A resistive humidity sensor contains a polymer layer doped with ionic salt[cite: 5]. As humidity increases, ionic conductivity rises, and the impedance of the element drops[cite: 5]. The measurement loses its reliability below 20% RH; ionic movement stops without sufficient water[cite: 5].
Condensation carries different risks for the two technologies[cite: 5]. When the ambient temperature drops below the dew point, a water film forms on the surface[cite: 5]. The capacitive element returns to its characteristics after drying[cite: 5]. In the resistive element, salt migration leaves a permanent drift[cite: 5].
Calibration is performed with saturated salt solutions[cite: 5]. Lithium chloride provides an 11% RH reference at 25 °C[cite: 5]. Sodium chloride provides a 75% RH reference at the same temperature[cite: 5]. Two-point measurement separates the slope and offset errors of the element[cite: 5].
Precise Measurement with the BirSens Hardware Ecosystem[cite: 5]
As the number of measurement points increases in critical facilities, wiring complexity becomes the dominant cost item; BirSens sensors place the measurement element behind a universal RJ45 connector and are positioned at any point using a standard Cat6 cable, thus reusing the structured cabling infrastructure as a measurement infrastructure[cite: 5].

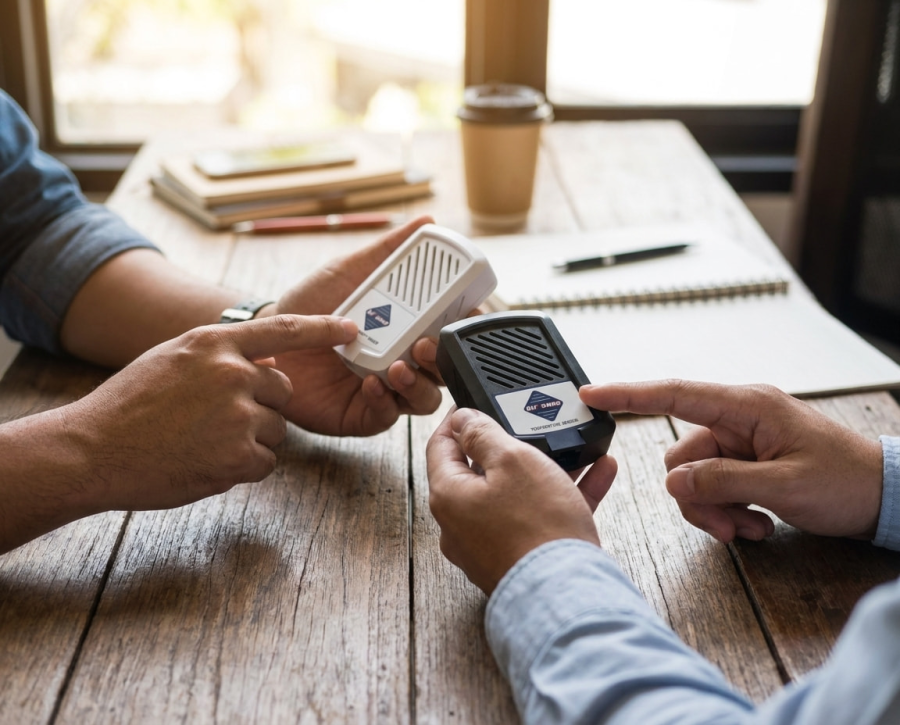

The BS 2S Temperature Sensor is used to measure the temperature values of critical environments[cite: 5]. Its measurement range is between -40 °C and +70 °C[cite: 5]. Its accuracy is 0.5 °C, and its resolution is at the 0.1 °C level[cite: 5].
The BS 2SN Temperature and Humidity Sensor is developed for indoor environments[cite: 5]. It maintains the same range and tolerance on the temperature side[cite: 5]. On the humidity side, it measures between 0% and 100% RH; its humidity accuracy is 1.8% RH, and its resolution is 1% RH[cite: 5].
Both models support three mounting formats: rack mounting, wall mounting, and desktop mounting[cite: 5]. The measurement data is collected on the Sensaway Monitoring and Management Software[cite: 5].
Threshold breaches are reported through six separate channels:[cite: 5]
- Written and illuminated warnings via LCD - works with BirSens modules[cite: 5].
- E-mail - sent via the management software[cite: 5].
- SMS and phone calls - works with the SMS module[cite: 5].
- Audible alerts via the management software[cite: 5].
- Audio-visual warning module (siren) - works with compatible BirSens modules and a siren[cite: 5].
- Sensaway Mobile application notifications[cite: 5].
Frequently Asked Questions[cite: 5]
What is the difference between PT100 and PT1000?[cite: 5]
Both elements use platinum and share the same temperature coefficient; the difference lies in their nominal resistance at 0 °C[cite: 5]. PT100 exhibits 100 Ω at this point, while PT1000 exhibits 1000 Ω[cite: 5]. A higher nominal resistance reduces the proportional share of the cable resistance within the total measurement; PT1000 yields fewer errors over long lines[cite: 5]. A higher resistance produces the same voltage drop with a lower current, reducing the self-heating error[cite: 5]. On the other hand, PT100 has a broader instrumentation ecosystem[cite: 5].
How is calibration drift prevented in digital sensors?[cite: 5]
Drift cannot be completely eliminated, but it is limited[cite: 5]. Periodic reference comparison is the first step; the sensor is read in the same environment alongside a traceable reference device, and the difference is recorded[cite: 5]. Avoiding condensation is the second step; a water film accumulating on the humidity element alters the polymer's characteristics[cite: 5]. Protective filter caps are used in environments containing chemical vapors[cite: 5]. Calibration coefficients written to the chip by the manufacturer must not be erased, and the reading software must apply these coefficients[cite: 5].
What measurement resolution is sufficient in a server room?[cite: 5]
The ASHRAE TC 9.9 A1-A4 equipment classes define a broad recommendation envelope between 18 °C and 27 °C[cite: 5]. The temperature gradient inside the cabinet can span several degrees between the top and bottom racks[cite: 5]. A 0.1 °C resolution makes this gradient visible[cite: 5]. An accuracy of 0.5 °C leaves sufficient tolerance for threshold alarms to operate without false triggering[cite: 5]. BS 2S and BS 2SN meet both values[cite: 5].
What does 1.8% RH accuracy mean in relative humidity measurement?[cite: 5]
Accuracy defines the maximum limit by which the read value can deviate from the true value[cite: 5]. When the BS 2SN reads 45% RH, the true relative humidity is between 43.2% and 46.8%[cite: 5]. Resolution is a different metric; a 1% RH value indicates the smallest step the device can report[cite: 5]. High resolution alone does not guarantee accuracy[cite: 5]. When setting alarm thresholds, the accuracy margin must be added to the threshold[cite: 5].
Hardware Selection and Technical Document Request[cite: 5]
Monitoring software performs only as well as the quality of the raw data it receives, and alarm rules, reports, and trend analyses all rely on the numbers generated by the same sensing element; a one-degree measurement error shifts the entire decision mechanism built upon it by the same amount[cite: 5].
NTC offers fast and economical measurement[cite: 5]. RTD provides the tightest tolerance and the widest range[cite: 5]. Digital elements provide ease of integration and noise immunity[cite: 5]. The facility type, threshold accuracy, and number of points determine the selection[cite: 5].
For your cabinet, server room, and indoor monitoring projects, you can review the BS 2S and BS 2SN product pages and request a technical datasheet for project-specific tolerance and point count calculations[cite: 5].
